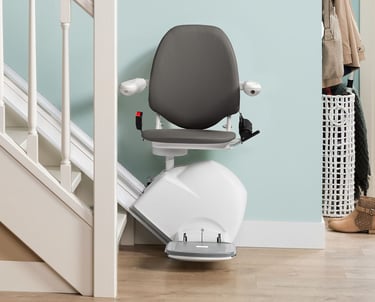

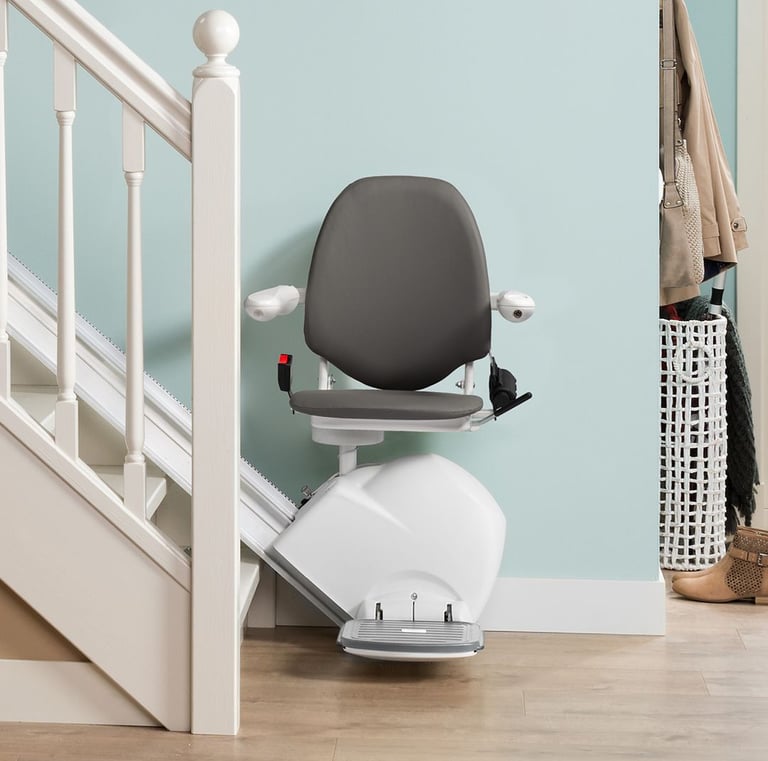

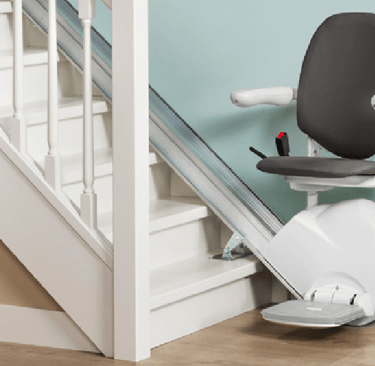

Otolift Line Straight Chairlift

Features

• Compact, slim railing: Visually appealing design that fits seamlessly into your home.

• Accommodates steep staircases: Reverse driving system ensures easy use on challenging stairs.

• Supports up to 160kg (optional): Suitable for a wide range of users.

• Powered footrest (optional): Provides added comfort.

• Battery-operated: Reliable operation even during power outages.

• Easy touch control with wireless remote: Smooth, user-friendly experience.

• Reliable and affordable: Specifically designed for straight stairs with a focus on dependability and cost-effectiveness.

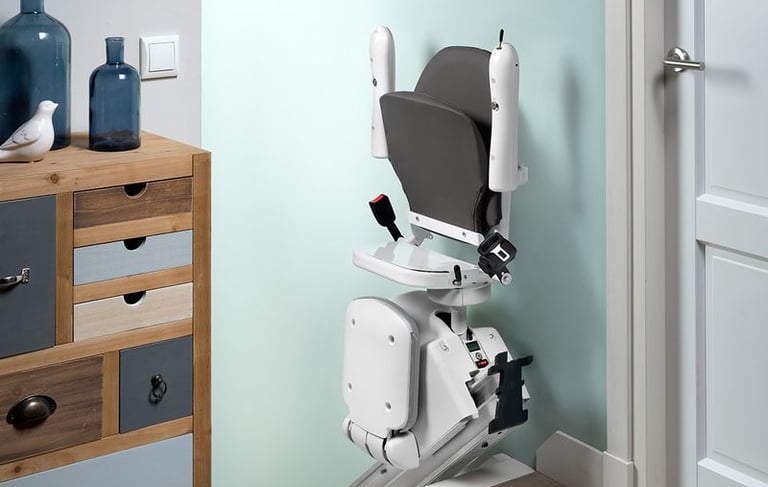

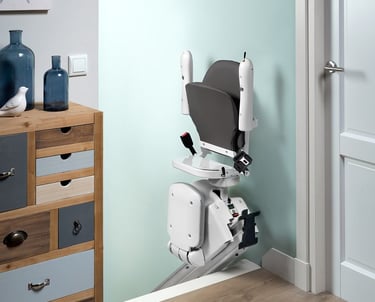

• Lightweight and foldable: Easy to fold in and out, saving space when not in use.

• Comfortable upholstery: Seat and backrest offer stylish, cushioned comfort.

• Compact design: Folds to just 31 cm deep, maximizing space on and around the stairs.

• Safe swivel handle: Effortlessly turns the chair for safe and easy entry and exit.

Technical Specifications

Noise Level Max operating level 45dBA

Method of Drive Toothrack and Pinion

Power Supply 2 x 12V DC (battery)

Maximum Capacity 125kg (Optional upto 160kg)

Track Extruded Aluminum Rails

Mains Supply 50-60Hz, 100-240V AC

Dimensions Centimeters

A Floor to bottom of footrest 65

B Top of footrest to top of seat * 500-580

C Top of seat to top of arms 230

D Top of arms to top of seat back 250

E Overall height from floor * 1100-1180

F Length of footrest 370

G Front of footrest to back of leg 610

H Back of seat to wall (minimum) 40 (Man) 50 (PS)

I Width between armrests 430

J Overall width 580

K Width of footrest 310

L Folded footrest width 310

M Climbing Angle 25-52⁰

N Front of rail to first step (47° start) 370

Q Minimum swivel radius from wall 665-720

S Seat to floor * 620-700

T Top of the footrest to floor 120

V Back of chair (inside) to wall 110 (Man)

Y Armrest to 1st riser (47° start) 550

1st Nose to outside arm

*Depending on seat height set

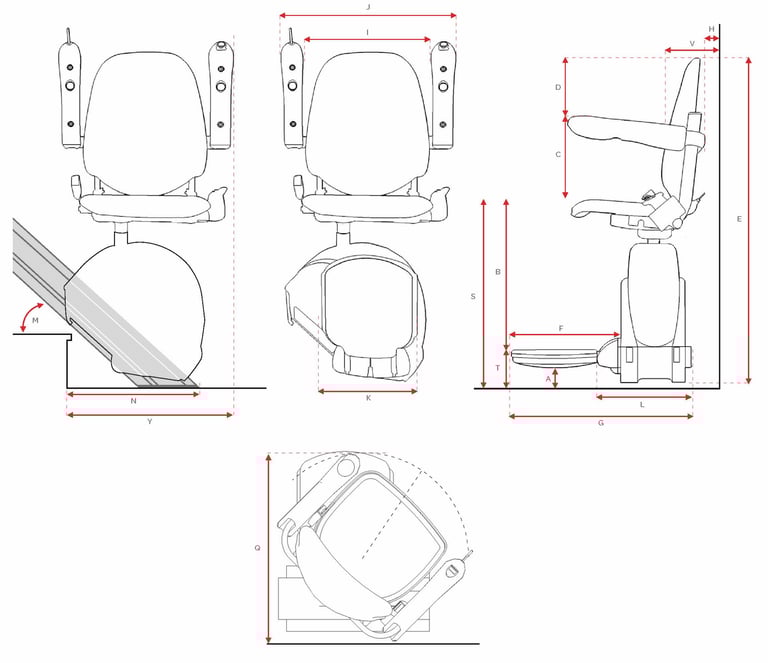

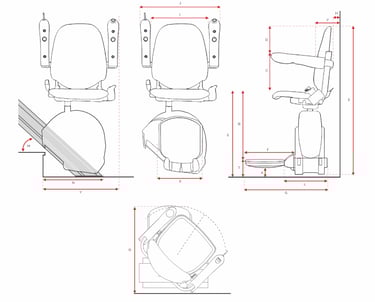

Stairlift Dimensions

Frequently Asked Questions

What is a chairlift?

A chairlift (stairlift) is a motorized device that helps individuals travel up and down stairs. It features a seat or platform that moves along a rail, providing a safe and independent way for those with limited mobility to navigate staircases.

Are chairlifts safe to use?

Absolutely, chairlifts are built with safety as a primary concern. They come with features like seat belts, safety sensors, and emergency stop buttons to protect users. Moreover, professional installation and routine maintenance are crucial for ensuring maximum safety and performance.

Who can benefit from a chairlift?

Chair lifts are valuable for individuals facing mobility challenges, including seniors, people with disabilities, or those recovering from surgeries or injuries. They offer a practical solution for anyone who struggles with climbing or descending stairs.

Can a chairlift be installed on any type of staircase?

Chair lifts can be installed on a variety of staircases, including straight, curved, and spiral designs. However, installation requirements and costs may differ based on the staircase type and the user's specific needs.
