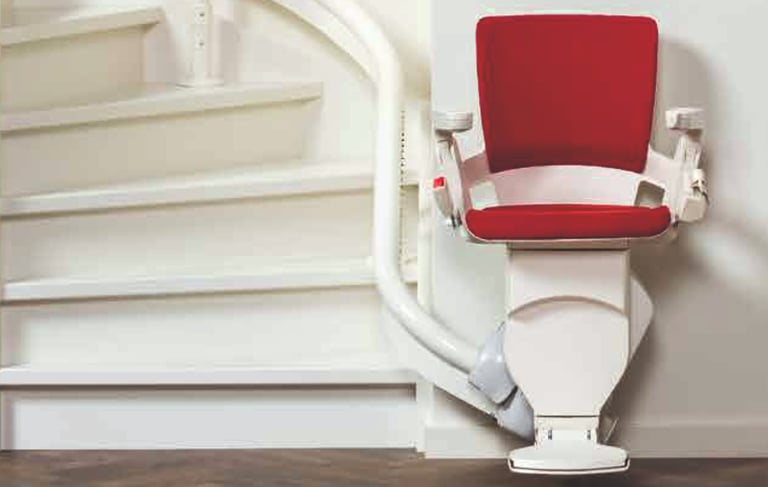

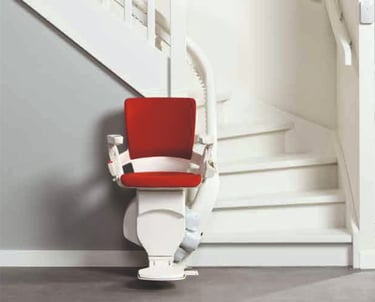

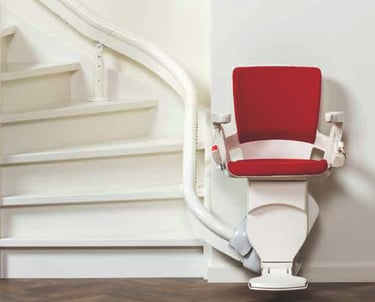

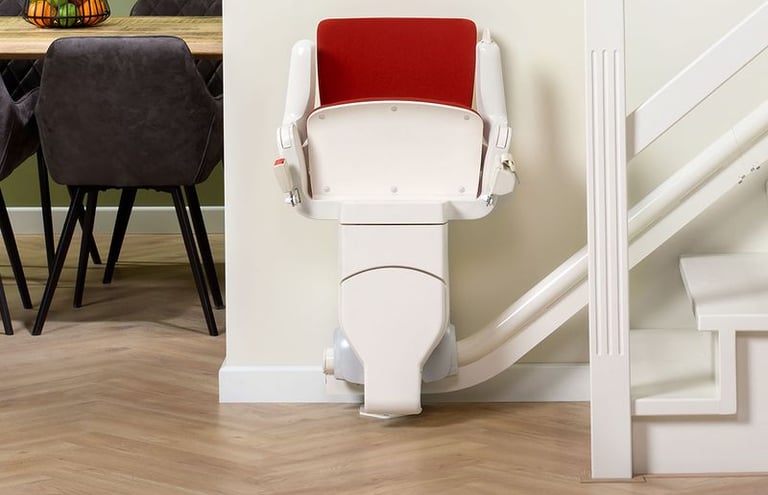

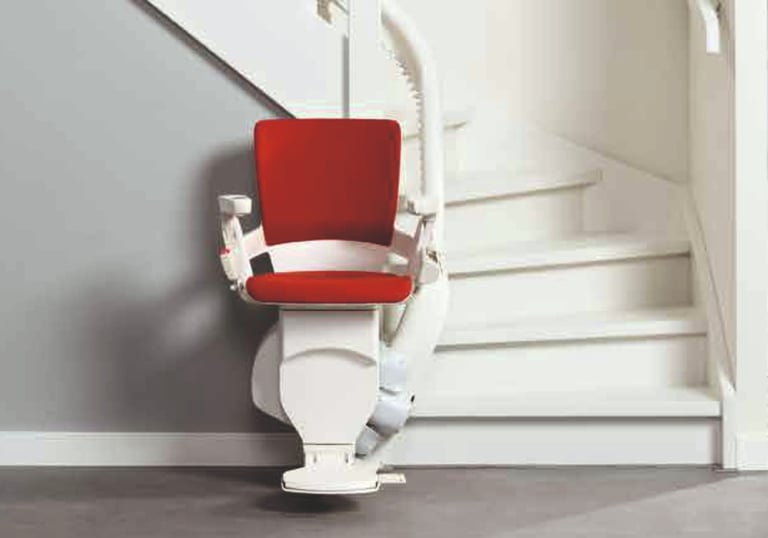

Royal Otolift Modul-Air Smart Curved Stairlift

Features

• Slim, compact design: Features the slimmest railing, offering both functionality and visual appeal.

• Handles steep staircases: Reverse driving system ensures ease of use on challenging inclines.

• Supports up to 125kg: Accommodates a wide range of users.

• Powered footrest: Enhances comfort during use.

• Battery-operated: Reliable even during power outages.

• Easy touch control & wireless remotes: Smooth, user-friendly operation with 2 remotes for convenience.

Technical Specifications

Noise Level Max operating level 50dBA

Method of Drive Roller Wheels & Rack Mounted at back

Power Supply 2 x 12V DC (battery)

Maximum Capacity 125kg

Track Single, Low Positioned, Steel Rail

Mains Supply 50-60Hz, 100-240V AC

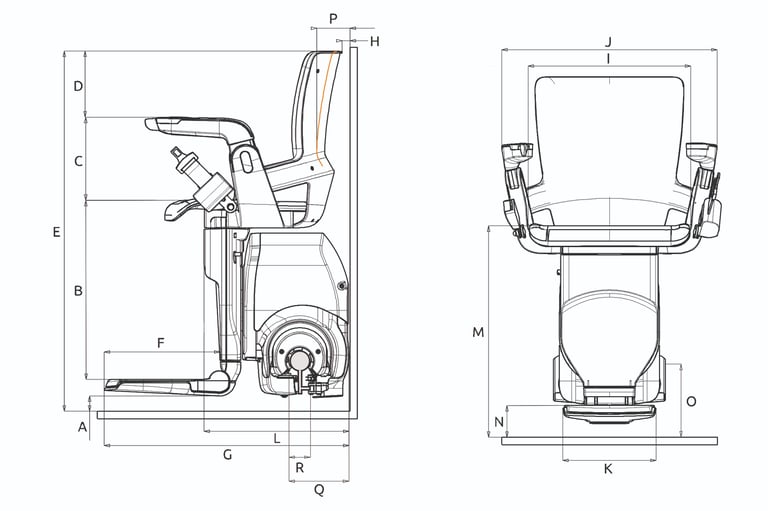

Dimensions Centimeters

A Floor to bottom of footrest 40

B Top of footrest to top of seat 480

C Top of seat to top of arms 215

D Top of arms to top of seat back 190

E Overall height from floor 965

F Length of footrest 315

G Front of footrest to back of chair to wall 610

H Back of seat to wall (minimum) 20

I Seating width 430

J Overall width 585

K Width of footrest 250

L Folded footrest width to wall 380

M Seat to floor 565 - 570

N Top of footrest to floor 75 - 80

O Top of the tube to floor 165

P Backrest chair (inside) to wall 80

Q Front of tube to wall 165

R Diameter of the tube 60

Stairlift Dimensions

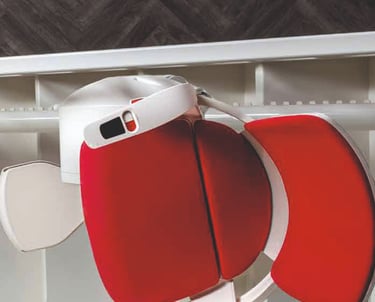

Reverse Drive Technology

Thanks to this smart technology, the chair can partially or even completely drive in reverse. This prevents you, for example, from hitting the wall or banister with your knees.

Frequently Asked Questions

What is a chairlift?

A chairlift (stairlift) is a motorized device that helps individuals travel up and down stairs. It features a seat or platform that moves along a rail, providing a safe and independent way for those with limited mobility to navigate staircases.

Are chairlifts safe to use?

Absolutely, chairlifts are built with safety as a primary concern. They come with features like seat belts, safety sensors, and emergency stop buttons to protect users. Moreover, professional installation and routine maintenance are crucial for ensuring maximum safety and performance.

Who can benefit from a chairlift?

Chair lifts are valuable for individuals facing mobility challenges, including seniors, people with disabilities, or those recovering from surgeries or injuries. They offer a practical solution for anyone who struggles with climbing or descending stairs.

Can a chairlift be installed on any type of staircase?

Chair lifts can be installed on a variety of staircases, including straight, curved, and spiral designs. However, installation requirements and costs may differ based on the staircase type and the user's specific needs.
