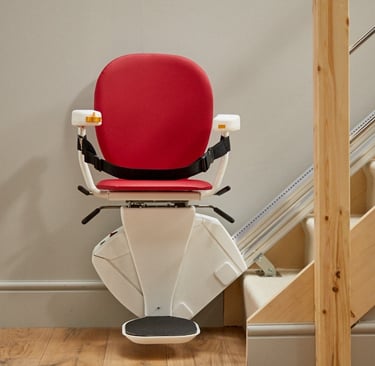

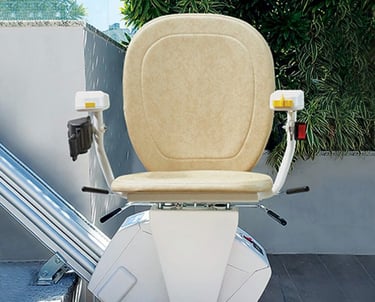

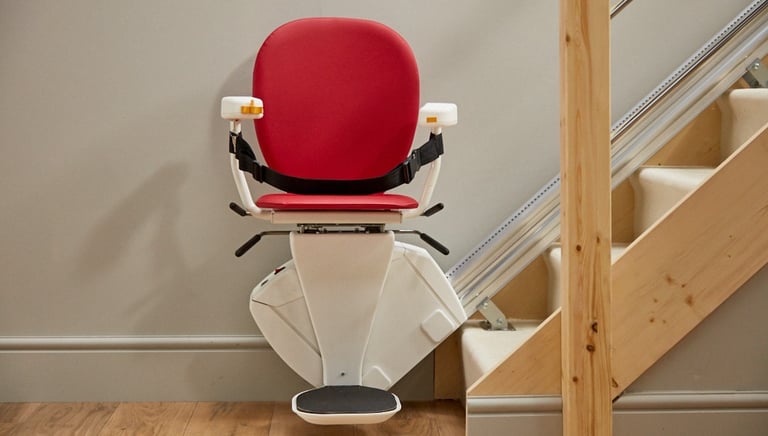

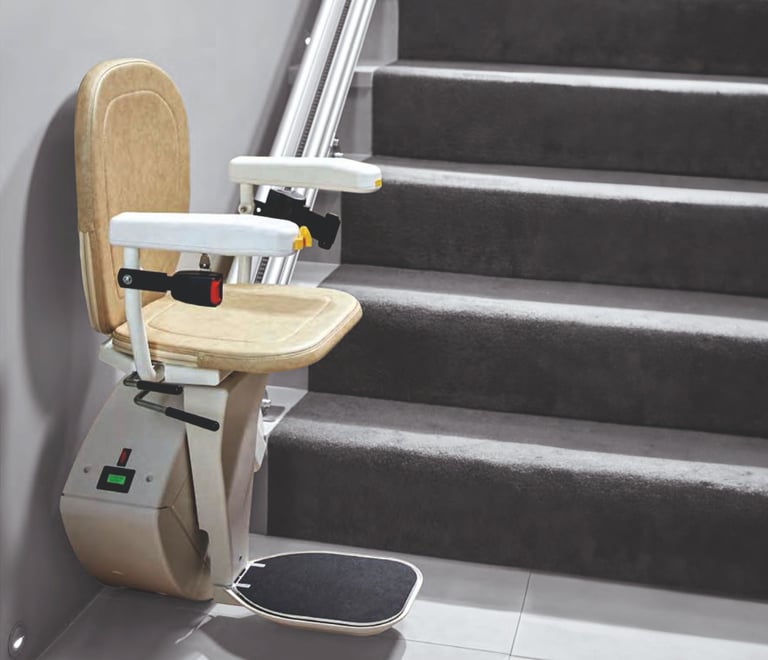

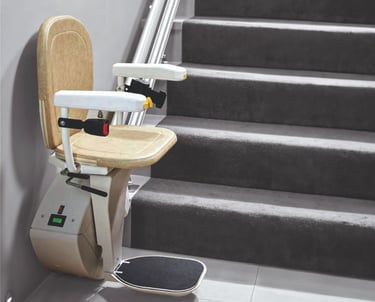

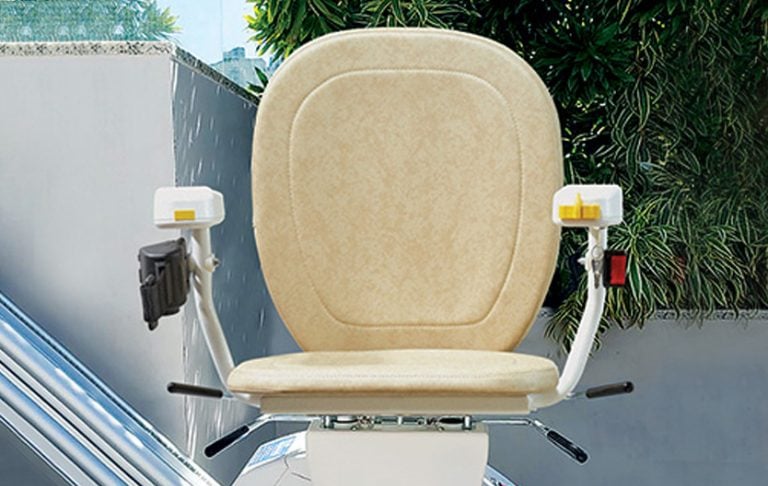

Bespoke Synergy Straight Stairlift

Features

• Reliable and smooth operation: Ensures ease of use and comfort.

• Manual and power swivel options: Customizable to meet user needs.

• Retractable seat belt: Enhances safety.

• Outdoor / Indoor Models available: Built for durability in all conditions.

• Supports maximum user weight up to 125kg: Suitable for a range of users.

• Joystick and remote control: Simple, user-friendly navigation.

• Battery-operated with fast installation: Maintenance-free and easy setup.

• Foldable footrest, seat, and armrest: Space-saving design.

• High-level safety features: Includes soft start/stop and electro-mechanical braking.

• LED fault code display: Easy diagnostics and repair guidance.

• Ergonomically designed: Ideal for users with limited mobility.

• Affordable, no civil work required: Great value with hassle-free installation.

Technical Specifications

Motor Output Speed 120mm/s | 4.8 inches per second

Method of Drive Rack and Pinion

Power Supply 24V DC (battery)

Maximum Capacity 125kg

Track Extruded Aluminium

Mains Supply 50-60Hz, 100-240V AC

Dimensions Inches

A Overall Height (from floor) 38

B Height of arms (from floor) 30

C Height of seat (from floor) 21

D Overall width 23

E Width of footrest 10

F Overall depth (from wall) 22

G Depth of seat (to backrest) 15

H Depth of footrest 12

I Overall Height (when folded) 39

J Overall depth (when folded) 12

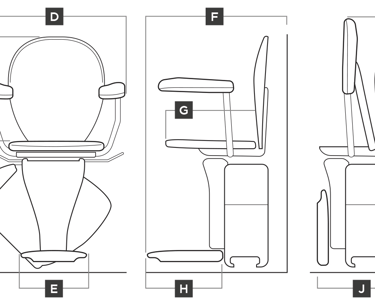

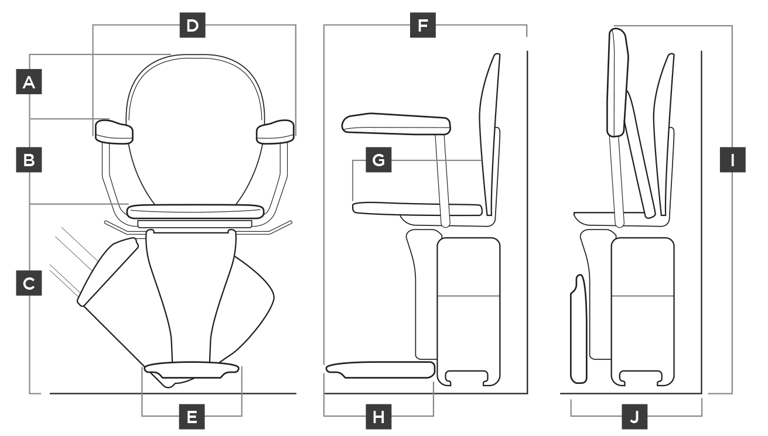

Stairlift Dimensions

Build your own dreams

Or someone else will hire you to build theirs. Here is how you can take action – starting today.

Frequently Asked Questions

What is a stairlift?

A stairlift is a motorized device that helps individuals travel up and down stairs. It features a seat or platform that moves along a rail, providing a safe and independent way for those with limited mobility to navigate staircases.

Are stairlifts safe to use?

Absolutely, stairlifts are built with safety as a primary concern. They come with features like seat belts, safety sensors, and emergency stop buttons to protect users. Moreover, professional installation and routine maintenance are crucial for ensuring maximum safety and performance.

Who can benefit from a stairlift?

Stairlifts are valuable for individuals facing mobility challenges, including seniors, people with disabilities, or those recovering from surgeries or injuries. They offer a practical solution for anyone who struggles with climbing or descending stairs.

Can a stair lift be installed on any type of staircase?

Stairlifts can be installed on a variety of staircases, including straight, curved, and spiral designs. However, installation requirements and costs may differ based on the staircase type and the user's specific needs.
